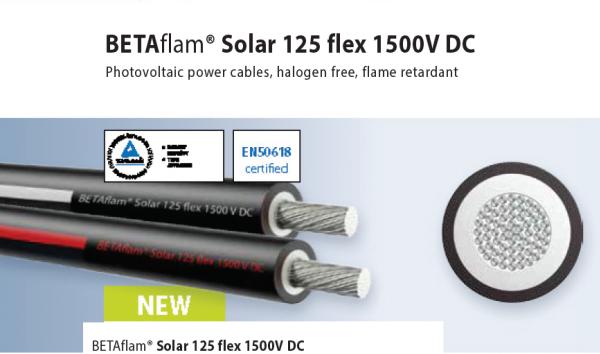

สายไฟ BETAfarm Solar 125  flex 1500V DC

Advantages
■ EN 50618 approval
■ Electron-beam cross-linked compounds
■ UV, ozone and hydrolysis resistant
■ High temperature resistance, the materials do not melt or flow
■ Good cold flexibility
■ Very long service life >25 years at 90 °C
■ Compatible to all popular connectors

Applications
Is used as photovoltaic cable between solar modules and inverters in a photovoltaic system with a rated value U0 = 1.5 kV DC.

Construction
Conductor       -> Tinned fine copper strand according to VDE 0295 / IEC 60228, Class 5
Insulation       -> XLPO, flame-retardant, halogen free, electron-beam cross-linked
Jacket              -> XLPO, flame-retardant, halogen free, electron-beam cross-linked, UV and ozone resistant, with white or red marking and stripe
Jacket colour -> black

Electrical characteristics
Rated value   -> U0 = 1500 V DC (max. permitted voltage U0 1800 V DC)
Test voltage   -> 11 kV AC 50 Hz

Thermal characteristics
Operating temperature    ->  –50 °C up to +120 °C
Ambient temperature       ->  –50 °C up to +90 °C
Max. short circuit temp.  ->  +280 °C, +536 °F / 5 s

Bending radius
Fixed installation       =>  > 4 × O
Occasionally moved  =>  > 5 × O

Standards / Material properties
Fire performance       : IEC 60332-1; IEC/EN 60332-3-25
Smoke emission         : IEC 61034; EN 61034-2
Low fire load               : DIN 51900
Approvals: EN50618 : TÜV 2 PfG 1990/05.12
